EventWeightBase Class Referenceabstract

#include <EventWeightBase.hxx>

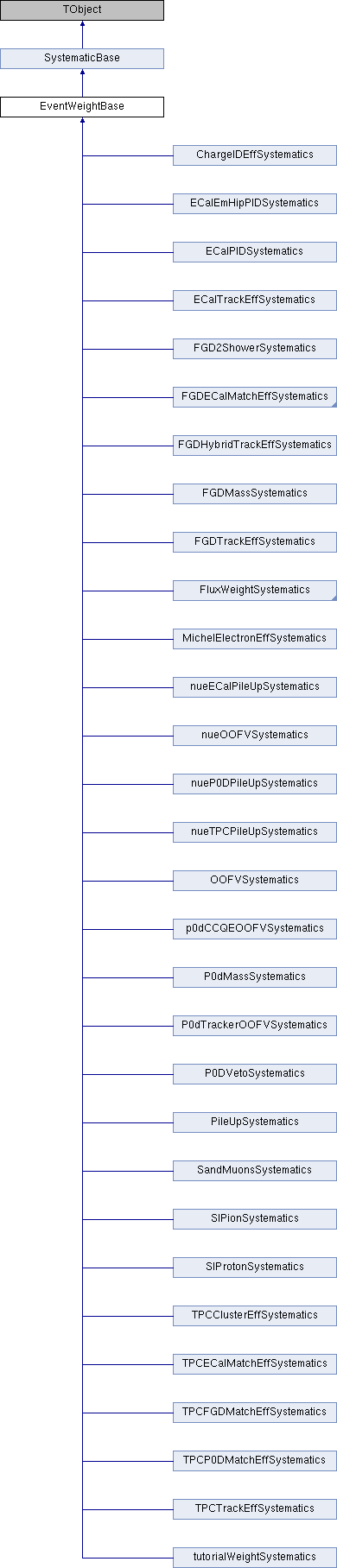

Inheritance diagram for EventWeightBase:
SystematicBase ChargeIDEffSystematics ECalEmHipPIDSystematics ECalPIDSystematics ECalTrackEffSystematics FGD2ShowerSystematics FGDECalMatchEffSystematics FGDHybridTrackEffSystematics FGDMassSystematics FGDTrackEffSystematics FluxWeightSystematics MichelElectronEffSystematics nueECalPileUpSystematics nueOOFVSystematics nueP0DPileUpSystematics nueTPCPileUpSystematics OOFVSystematics p0dCCQEOOFVSystematics P0dMassSystematics P0dTrackerOOFVSystematics P0DVetoSystematics PileUpSystematics SandMuonsSystematics SIPionSystematics SIProtonSystematics TPCClusterEffSystematics TPCECalMatchEffSystematics TPCFGDMatchEffSystematics TPCP0DMatchEffSystematics TPCTrackEffSystematics tutorialWeightSystematics

Public Member Functions

 EventWeightBase ()
 Create the systematic, with one parameter.

 EventWeightBase (UInt_t npar)
 Create the systematic, specifying the number of systematic parameters.

virtual ~EventWeightBase ()
 Everyone should have a destructor.

virtual void InitializeEvent (const AnaEventC &event, const SelectionBase &sel, Int_t ibranch)
 Initialize the SystBox for this event.

virtual Weight_h ComputeWeight (const ToyExperiment &toy, const AnaEventC &event, const ToyBoxB &box, const SelectionBase &sel)
 This is now the actual method called by SystematicManager, which allows further selection tunning of relevant objects once the ToyBox is filled.

virtual Weight_h ComputeWeight (const ToyExperiment &toy, const AnaEventC &event, const ToyBoxB &box)=0

- Public Member Functions inherited from SystematicBase
 SystematicBase ()
 Create the systematic, with one parameter.

 SystematicBase (UInt_t npar)
 Create the systematic, specifying the number of systematic parameters.

virtual ~SystematicBase ()
 Everyone should have a destructor.

UInt_t GetNParameters () const
 Returns the number of systematic parameters associated to this systematic.

void SetNParameters (int N)
 Set the number of systematic parameters associated to this systematic.

virtual const char * GetName () const
 Return the name of this systematic. This overrides the TObject::GetName() interface.

const std::string & Name () const
 Return the name of this systematic.

void SetName (const std::string &name)
 Set the name of this systematic.

Int_t GetIndex () const
 Return the index of this systematic.

void SetIndex (Int_t index)
 Set the index of this systematic.

TypeEnum Type () const
 Return the type of this systematic.

std::string ConvertType ()
 Return the type of this systematic.

void SetType (TypeEnum type)
 Set the type of this systematic.

PDFEnum PDF () const
 Return the PDF of this systematic.

std::string ConvertPDF ()
 Return the PDF of this systematic.

void SetPDF (PDFEnum PDF)
 Set the PDF of this systematic.

void SetEnabled (bool ena)
 Set the enable bit.

bool IsEnabled () const
 Returns the enable bit.

virtual void FinalizeEvent (const AnaEventC &event)
 Delete the SystBox for this event.

SystBoxB * GetSystBox (const AnaEventC &event, Int_t isel=0, Int_t ibranch=0) const
 Get the SystBox corresponding to a selection, branch and event.

virtual void Initialize (Int_t nsel, Int_t isel, Int_t nbranch, Int_t nevents)
 Create the array of SystBox.

 ClassDef (SystematicBase, 2)


Protected Member Functions

virtual Int_t GetRelevantRecObjectGroups (const SelectionBase &, Int_t ibranch, Int_t *IDs) const
 Get the IDs of the RecObject groups that are relevant for this systematic in a given selection.

virtual Int_t GetRelevantTrueObjectGroups (const SelectionBase &, Int_t ibranch, Int_t *IDs) const
 Get the IDs of the TrueObject groups that are relevant for this systematic in a given selection.

virtual bool IsRelevantRecObject (const AnaEventC &, const AnaRecObjectC &) const
 Check whether a AnaRecObject is relevant for this systematic or not.

virtual bool IsRelevantTrueObject (const AnaEventC &, const AnaTrueObjectC &) const
 Check whether a AnaTrueObject is relevant for this systematic or not.

virtual void FillSystBox (const AnaEventC &event, const SelectionBase &sel, Int_t ibranch)
 Fills the SystBox.

virtual bool CheckTrueRecoAssociation (const AnaTrueObjectC &trueRecObject, const AnaRecObjectC &track) const
 Criteria for true-reco association for this systematic.

void FillTrueRecoAssociation (SystBoxB &box)
 Fll the true-reco association array.


Additional Inherited Members

- Public Types inherited from SystematicBase
enum  TypeEnum { kVariation = 0, kWeight, kFlux, kUnknown }
 Enumerator describing the values that _type member can take.

enum  PDFEnum {
  kGaussian = 0, kUniform, kBinomial, kMultinomial,
  kUnknownPDF
}
 Enumerator describing the values that _PDF member can take.

- Protected Attributes inherited from SystematicBase
std::string _name
 The name of this systematic.

Int_t _index
 The index of this systematic (needed by SystematicsManager);.

TypeEnum _type
 The type of this systematic (variation, weight or flux)

bool _enabled
 Is this systematic enabled ?

PDFEnum _PDF
 The PDF use for the systematic parameter scan.

UInt_t _nParameters
 the number of systematic parameters

SystBoxB **** _systBoxes
 ----—— Relevant objects for this systematic ------------—— More...

Int_t _systBoxesNSel

Int_t _systBoxesNBranches [NMAXSELECTIONS]

Int_t _systBoxesNEvents [NMAXSELECTIONS][NMAXBRANCHES]


Detailed Description

This is the base class that all weight systematics should inherit from.

Definition at line 12 of file EventWeightBase.hxx.

Member Function Documentation

§ ComputeWeight()

virtual Weight_h EventWeightBase::ComputeWeight ( const ToyExperiment &  toy,
const AnaEventC &  event,
const ToyBoxB &  box
)
pure virtual

This is now the actual method called by SystematicManager, which allows further selection tunning of relevant objects once the ToyBox is filled This MUST be overridden in the derived class.

Implemented in PileUpSystematics, P0dTrackerOOFVSystematics, TPCTrackEffSystematics, MichelElectronEffSystematics, TPCClusterEffSystematics, TPCECalMatchEffSystematics, P0DVetoSystematics, nueOOFVSystematics, FGDMassSystematics, OOFVSystematics, SandMuonsSystematics, P0dMassSystematics, tutorialWeightSystematics, ChargeIDEffSystematics, nueECalPileUpSystematics, nueP0DPileUpSystematics, nueTPCPileUpSystematics, SIPionSystematics, p0dCCQEOOFVSystematics, FGDHybridTrackEffSystematics, FGDTrackEffSystematics, FluxWeightSystematics, FGDECalMatchEffSystematics, ECalEmHipPIDSystematics, ECalPIDSystematics, ECalTrackEffSystematics, FGD2ShowerSystematics, SIProtonSystematics, TPCP0DMatchEffSystematics, TPCFGDMatchEffSystematics, and FGDECalSMRDMatchEffSystematics.

The documentation for this class was generated from the following files:
