#include <SystematicBase.hxx>

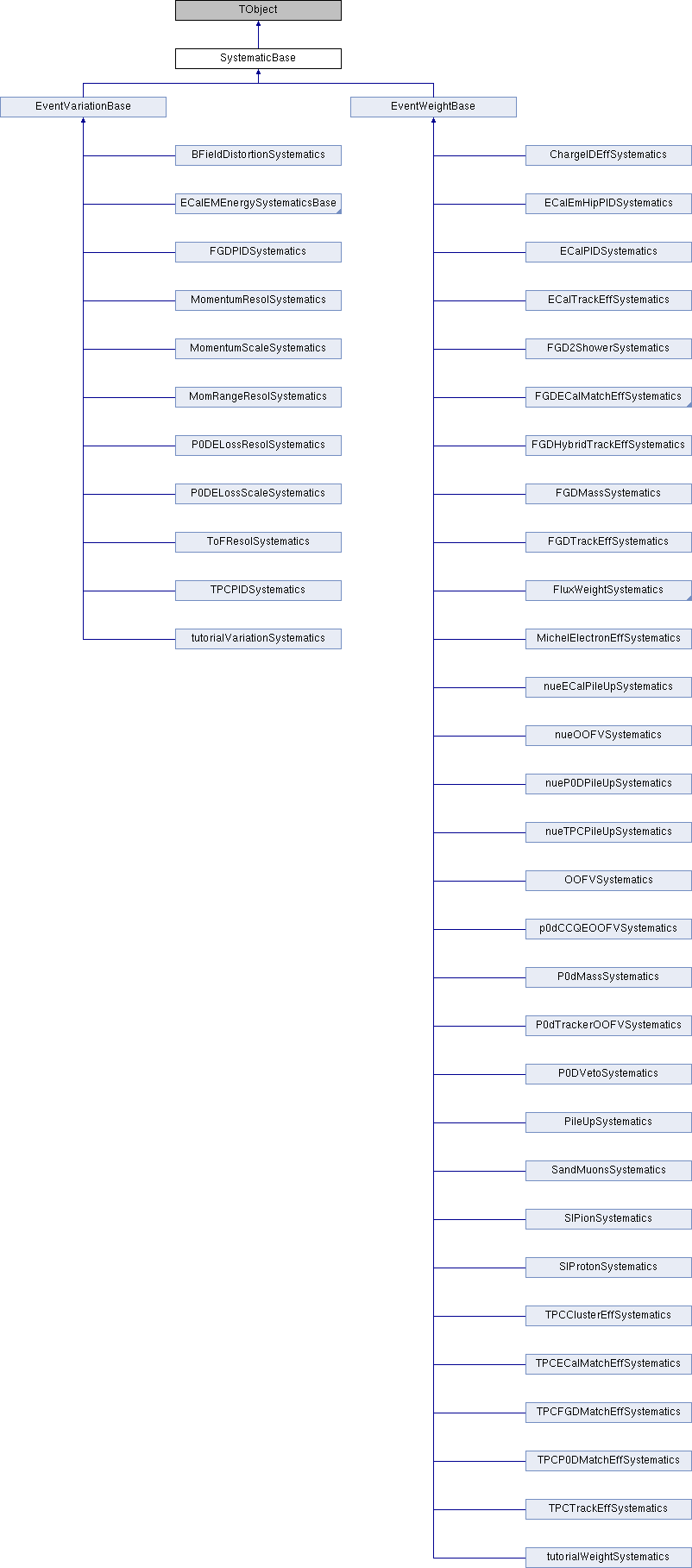

Inheritance diagram for SystematicBase:
Public Types | |
| enum | TypeEnum { kVariation = 0, kWeight, kFlux, kUnknown } |
| Enumerator describing the values that _type member can take. | |
| enum | PDFEnum { kGaussian = 0, kUniform, kBinomial, kMultinomial, kUnknownPDF } |
| Enumerator describing the values that _PDF member can take. | |
Public Member Functions | |
| SystematicBase () | |
| Create the systematic, with one parameter. | |
| SystematicBase (UInt_t npar) | |
| Create the systematic, specifying the number of systematic parameters. | |
| virtual | ~SystematicBase () |
| Everyone should have a destructor. | |
| UInt_t | GetNParameters () const |
| Returns the number of systematic parameters associated to this systematic. | |
| void | SetNParameters (int N) |
| Set the number of systematic parameters associated to this systematic. | |
| virtual const char * | GetName () const |
| Return the name of this systematic. This overrides the TObject::GetName() interface. | |
| const std::string & | Name () const |
| Return the name of this systematic. | |
| void | SetName (const std::string &name) |
| Set the name of this systematic. | |
| Int_t | GetIndex () const |
| Return the index of this systematic. | |
| void | SetIndex (Int_t index) |
| Set the index of this systematic. | |
| TypeEnum | Type () const |
| Return the type of this systematic. | |
| std::string | ConvertType () |
| Return the type of this systematic. | |
| void | SetType (TypeEnum type) |
| Set the type of this systematic. | |
| PDFEnum | PDF () const |
| Return the PDF of this systematic. | |
| std::string | ConvertPDF () |
| Return the PDF of this systematic. | |
| void | SetPDF (PDFEnum PDF) |
| Set the PDF of this systematic. | |
| void | SetEnabled (bool ena) |
| Set the enable bit. | |
| bool | IsEnabled () const |
| Returns the enable bit. | |
| virtual void | FinalizeEvent (const AnaEventC &event) |
| Delete the SystBox for this event. | |
| SystBoxB * | GetSystBox (const AnaEventC &event, Int_t isel=0, Int_t ibranch=0) const |
| Get the SystBox corresponding to a selection, branch and event. | |
| virtual void | Initialize (Int_t nsel, Int_t isel, Int_t nbranch, Int_t nevents) |
| Create the array of SystBox. | |
| ClassDef (SystematicBase, 2) | |
Protected Attributes | |
| std::string | _name |
| The name of this systematic. | |
| Int_t | _index |
| The index of this systematic (needed by SystematicsManager);. | |
| TypeEnum | _type |
| The type of this systematic (variation, weight or flux) | |
| bool | _enabled |
| Is this systematic enabled ? | |
| PDFEnum | _PDF |
| The PDF use for the systematic parameter scan. | |
| UInt_t | _nParameters |
| the number of systematic parameters | |
| SystBoxB **** | _systBoxes |
| ----—— Relevant objects for this systematic ------------—— More... | |
| Int_t | _systBoxesNSel |
| Int_t | _systBoxesNBranches [NMAXSELECTIONS] |
| Int_t | _systBoxesNEvents [NMAXSELECTIONS][NMAXBRANCHES] |
Detailed Description
This is the base class that all systematics should inherit from.
- Variation: modify some aspect of the input data. The selection needs to be redone in general. This is what we call Toy Experiments
- Weight: A weight for the event is calculated, which depends on the event properties, but no variation on the event is performed. Selection does not have to be redone
Definition at line 19 of file SystematicBase.hxx.
Member Data Documentation
§ _systBoxes
|
protected |
----—— Relevant objects for this systematic ------------——
The triple array of SystBox (selection:branch:event)
Definition at line 131 of file SystematicBase.hxx.
The documentation for this class was generated from the following files:
- /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/psyche/psycheCore/v3r12/src/SystematicBase.hxx
- /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/psyche/psycheCore/v3r12/src/SystematicBase.cxx
