baseAnalysis Class Reference

#include <baseAnalysis.hxx>

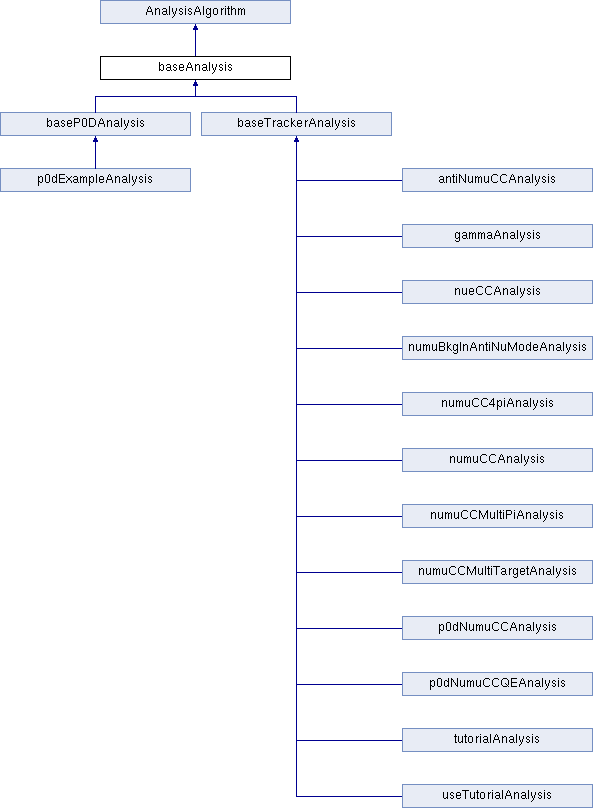

Inheritance diagram for baseAnalysis:

Public Types
enum	enumStandardMicroTrees_baseAnalysis {   run = enumStandardMicroTreesLast_AnalysisAlgorithm+1, subrun, evt, evt_time,   bunch, NWEIGHTS, weight, TruthVertexID,   TruthVertexNB, RooVtxIndex, RooVtxEntry, RooVtxEntry2,   RooVtxFile, nu_pdg, nu_trueE, nu_truereac,   nu_truedir, truelepton_mom, truelepton_costheta, truelepton_dir,   truevtx_pos, selvtx_det, selvtx_pos, selvtx_truepos,   true_signal, weight_syst_total_noflux, enumStandardMicroTreesLast_baseAnalysis }
enum	enumConf_baseAnalysis {   sipion_syst =ConfigurationManager::enumConfLast_ConfigurationManager+1, siproton_syst, nuflux_syst, antinuflux_syst,   all_syst, zero_var, enumConfLast_baseAnalysis }
Public Types inherited from AnalysisAlgorithm
enum	enumAnalysisPoint {   kInitialize =0, kDefineProductions, kDefineInputConverters, kDefineSelections,   kDefineCorrections, kDefineSystematics, kDefineConfigurations, kDefineMicroTrees,   kDefineTruthTree, kFillConfigTree, kInitializeSpill, kInitializeBunch,   kInitializeConfiguration, kInitializeToy, kInitializeSelection, kFinalizeSelection,   kFinalizeToy, kFillToyVarsInMicroTrees, kFinalizeConfiguration, kFillCategories,   kFillMicroTrees, kFinalizeBunch, kFillTruthTree, kFinalizeSpill,   kFinalize }
enum	enumStandardMicroTrees_AnalysisAlgorithm {   firstCategory = OutputManager::enumStandardMicroTreesLast_OutputManager+1, firstCategoryCounter = firstCategory+NMAXCATEG, entry = firstCategoryCounter + NMAXCATEGCOUNTERS, toy_ref,   toy_index, toy_par_weight, toy_par_var, NWEIGHTSYST,   weight_syst, weight_syst_total, weight_corr, weight_corr_total,   redo, accum_level, first_cut, last_cut =first_cut+NMAXSTEPS,   enumStandardMicroTreesLast_AnalysisAlgorithm }
enum	enumConfigTree_AnalysisAlgorithm {   SoftwareVersion =0, HOSTNAME, CMTPATH, INPUTFILE,   OriginalFile, MinAccumLevelToSave, enumConfigTreeLast_AnalysisAlgorithm }

Public Member Functions
	baseAnalysis (AnalysisAlgorithm *ana=NULL)
virtual bool	Initialize ()
	[AnalysisAlgorithm_mandatory]
virtual bool	InitializeSpill ()
virtual bool	FinalizeConfiguration ()
virtual void	DefineProductions ()
virtual void	DefineInputConverters ()
virtual void	DefineCorrections ()
virtual void	DefineSystematics ()
virtual void	DefineConfigurations ()
virtual void	DefineMicroTrees (bool addBase=true)
virtual void	DefineTruthTree ()
virtual bool	CheckFillTruthTree (const AnaTrueVertex &vtx)=0
virtual void	FillTruthTree (const AnaTrueVertex &vtx)=0
void	FillMicroTreesBase (bool addBase=true)
void	FillToyVarsInMicroTreesBase (bool addBase=true)
void	FillTruthTree ()
void	FillTruthTreeBase (const AnaTrueVertex &vtx, const SubDetId::SubDetEnum det=SubDetId::kFGD1, bool IsAntinu=false)
AnaSpill &	GetSpill ()
	Get a casted AnaSpillC to AnaSpill from the InputManager.
AnaBunch &	GetBunch ()
	Get a casted AnaBunchBB to AnaBunch from the InputManager (TODO the protection)
AnaEvent &	GetEvent ()
	Get a casted AnaEventC to AnaEvent.
virtual AnaEventC *	MakeEvent ()
	Create the appropriate event time from an Spill and a Bunch in that spill.
virtual AnaVertexB *	GetVertex () const =0
virtual AnaTrueVertexB *	GetTrueVertex () const =0
void	SetSaveRooTracker (bool save)
	Set whether to save the RooTrackerVtx tree or not.
void	SetRooVtxManager (RooTrackerVtxManager *man)
	Set the RooTrackerVtxManager.
Public Member Functions inherited from AnalysisAlgorithm
	AnalysisAlgorithm (AnalysisAlgorithm *ana=NULL)
virtual void	Finalize ()
	[AnalysisAlgorithm_optional]
virtual void	FinalizeSpill ()
virtual void	InitializeBunch ()
virtual void	FinalizeBunch ()
virtual void	InitializeConfiguration ()
virtual void	InitializeToy ()
virtual void	FinalizeToy ()
virtual void	InitializeSelection (const SelectionBase &)
virtual void	FinalizeSelection (const SelectionBase &)
virtual void	FillCategories ()
virtual void	FillConfigTree ()
virtual void	DefineSelections ()=0
virtual void	FillMicroTrees (bool addBase=true)=0
virtual void	FillToyVarsInMicroTrees (bool addBase=true)=0
void	FinalizeToyBase ()
	[AnalysisAlgorithm_mandatory] More...
void	SetFillSuccessOnly (bool fill)
	Fill trees and process weight systematics only when any of the branches is successful.
bool	GetFillSuccessOnly ()
void	SetInitializeTrees (bool ini)
	Initialize trees at the beginning of each configuration.
bool	GetInitializeTrees ()
void	SetMinAccumCutLevelToSave (Int_t level)
	Set the minimum accumulated cut level to save an event into the micro-tree.
Int_t	GetMinAccumCutLevelToSave ()
	Get the minimum accumulated cut level to save an event into the micro-tree.
bool	CheckAccumLevelToSave ()
	Check if the condition is fulfilled for at least one branch.
void	SetEvent (AnaEventC *event)
	Set the current event into the algorithm and all used algorithms.
void	SetToyBox (const ToyBoxB *box, Int_t isel=0)
	Set the current box into the algorithm and all used algorithms. This is useful when one Analysis uses another.
void	UseAnalysis (AnalysisAlgorithm *ana)
	Used a given analysis.
void	SetSelectedSelection (Int_t sel)
	Select one of the selections.
void	SetVersionCheck (bool check)
	Set version checking.
void	SetAnalysisPoint (enumAnalysisPoint point)
	Set the point of the analysis at which AnalysisLoop is.
HighlandInputManager &	input ()
SelectionManager &	sel ()
CorrectionManager &	corr ()
SystematicManager &	syst ()
EventWeightManager &	eweight ()
EventVariationManager &	evar ()
OutputManager &	output ()
ConfigurationManager &	conf ()
CategoryManager &	cat ()
DocStringManager &	doc ()
virtual const ToyBoxB &	boxB (Int_t isel=-1) const

Protected Member Functions
void	AddZeroVarConfiguration ()

Protected Attributes
RooTrackerVtxManager *	_rooVtxManager
	the manager of the RooTrackerVtx
bool	_saveRooTrackerVtxTree
	Save RooTracker tree in output file.
FluxWeighting *	_flux
	Access to the flux weighting.
bool	_applyFluxWeight
	Flag to enable/disable flux weight.
std::string	_fluxFile
	Flux file and option.
std::string	_fluxTuning
bool	_enableSingleVariationSystConf
bool	_enableSingleWeightSystConf
bool	_enableAllSystConfig
bool	_enableZeroVarConfig
Int_t	_ntoys
Int_t	_randomSeed
Protected Attributes inherited from AnalysisAlgorithm
HighlandInputManager *	_inputManager
	Input Manager: access to the current Event.
CorrectionManager *	_corrManager
	Correction Manager.
SystematicManager *	_systManager
	Systematics Manager.
EventWeightManager *	_weightManager
	EventWeight Manager.
EventVariationManager *	_variationManager
	EventVariation Manager.
OutputManager *	_outputManager
	Output Manager.
ConfigurationManager *	_confManager
	Configuration Manager.
SelectionManager *	_selManager
CategoryManager *	_categManager
DocStringManager *	_docManager
const ToyBoxB *	_box [NMAXSELECTIONS]
	The analysis box.
Int_t	_min_accum_cut_level
	the minimum accumulated cut level to save an event into the micro-tree
bool	_fillSuccessOnly
	Fill trees and process weight systematics only when any of the branches is succesful.
bool	_initializeTrees
	Initialize trees at the beginning of each configuration.
AnaEventC *	_event
	The current event.
std::vector< AnalysisAlgorithm * >	_usedAnalyses
	The Vector of used analysis.
Int_t	_selectedSelection
	The selected selection.
bool	_setMethodCalled
	Boolean parameter to know whether nny of the methods that sets things into used analysis has been called.
bool	_versionCheck
enumAnalysisPoint	_analysisPoint

Detailed Description

This class provides a base for user analyses. It handles many common functions, and provides a structure so that users don't have to write too much "boiler-plate" code.

User analyses should inherit from this class.

Definition at line 24 of file baseAnalysis.hxx.

Constructor & Destructor Documentation

baseAnalysis()

baseAnalysis::baseAnalysis

(

AnalysisAlgorithm *

ana = NULL

)

Constructor, which instantiates the necessary converters for converting input files to the AnaSpill format.

TODO

Definition at line 20 of file baseAnalysis.cxx.

                                                : AnalysisAlgorithm(ana){
  //********************************************************************

  // Add the package version
  // Add package versions
  ND::versioning().AddPackage("psychePolicy",        anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHEPOLICYROOT")));
  ND::versioning().AddPackage("psycheEventModel",    anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHEEVENTMODELROOT")));
  ND::versioning().AddPackage("psycheCore",          anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHECOREROOT")));
  ND::versioning().AddPackage("psycheUtils",         anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHEUTILSROOT")));
  ND::versioning().AddPackage("psycheND280Utils",    anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHEND280UTILSROOT")));
  ND::versioning().AddPackage("psycheIO",            anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHEIOROOT")));
  ND::versioning().AddPackage("psycheSelections",    anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHESELECTIONSROOT")));
  ND::versioning().AddPackage("psycheSystematics",   anaUtils::GetSoftwareVersionFromPath((std::string)getenv("PSYCHESYSTEMATICSROOT")));
  ND::versioning().AddPackage("highlandEventModel",  anaUtils::GetSoftwareVersionFromPath((std::string)getenv("HIGHLANDEVENTMODELROOT")));
  ND::versioning().AddPackage("highlandTools",       anaUtils::GetSoftwareVersionFromPath((std::string)getenv("HIGHLANDTOOLSROOT")));
  ND::versioning().AddPackage("highlandCore",        anaUtils::GetSoftwareVersionFromPath((std::string)getenv("HIGHLANDCOREROOT")));
  ND::versioning().AddPackage("highlandCorrections", anaUtils::GetSoftwareVersionFromPath((std::string)getenv("HIGHLANDCORRECTIONSROOT")));
  ND::versioning().AddPackage("highlandIO",          anaUtils::GetSoftwareVersionFromPath((std::string)getenv("HIGHLANDIOROOT")));

  ND::versioning().AddPackage("baseAnalysis", anaUtils::GetSoftwareVersionFromPath((std::string)getenv("BASEANALYSISROOT")));

  /// TODO
  versionUtils::prod6_POT    = false;
#if VERSION_HAS_OFFICIAL_POT
  versionUtils::prod6_POT    = true;
#endif
}

Member Data Documentation

_enableZeroVarConfig

bool baseAnalysis::_enableZeroVarConfig

protected

Whether to use zero-variation configuration: no variation will be applied to systematics, i.e. those relevant will work as correction

Definition at line 116 of file baseAnalysis.hxx.

---

The documentation for this class was generated from the following files:

• /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/highland2/baseAnalysis/v2r8/src/baseAnalysis.hxx
• /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/highland2/baseAnalysis/v2r8/src/baseAnalysis.cxx
