ToyBoxTracker Class Reference

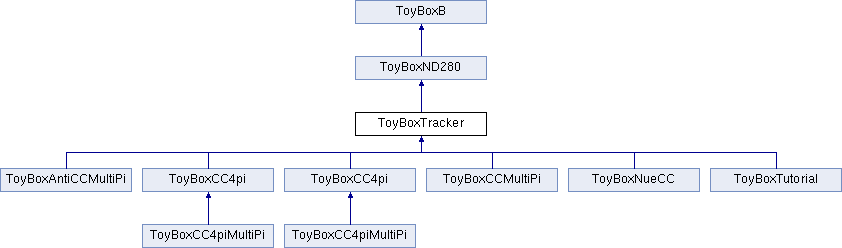

Inheritance diagram for ToyBoxTracker:

Public Member Functions
virtual void	Reset ()
	This method should be implemented by the derived class. If so it does nothing here.
virtual void	ResetBase ()
	Reset this base class. More...
Public Member Functions inherited from ToyBoxB
void	SoftReset ()
	Reset the ToyBoxB.

Public Attributes
AnaVertexB *	Vertex
	For storing the reconstructed vertex.
AnaTrackB *	MainTrack
	For storing the Main Track (The lepton candidate in geranal: HMN or HMP track)
AnaTrackB *	HMtrack
	For storing the highest momentum track.
AnaTrackB *	HMNtrack
	For storing the highest momentum negative track.
AnaTrackB *	HMPtrack
	For storing the highest momentum positive track.
AnaTrackB *	SHMtrack
	For storing the second highest momentum track.
AnaTrackB *	SHMNtrack
	For storing the second highest momentum negative track.
AnaTrackB *	SHMPtrack
	For storing the second highest momentum positive track.
AnaTrackB **	NegativeTPCtracks
	For storing all negative tracks in the event with TPC information.
int	nNegativeTPCtracks
AnaTrackB **	PositiveTPCtracks
	For storing all positive tracks in the event with TPC information.
int	nPositiveTPCtracks
bool	LikeComputed [NMAXPARTICLES]
	For storing whether TPC PID likelihoods have been computed.
int	nLikeComputed
Float_t	Likelihood [NMAXPARTICLES][4]
	For storing TPC PID likelihoods.
int	nLikelihood
AnaTrackB *	VetoTrack
	For storing the veto track.
AnaTrackB *	OOFVtrack
	For storing the oofv fgd tracks.
Public Attributes inherited from ToyBoxND280
AnaTrueVertexB *	TrueVertex
	For storing the true vertex, for analyses with no reconstructed primary vertex.
Public Attributes inherited from ToyBoxB
UInt_t	nBranches
	The number of branches in the selection this ToyBox belongs to.
Int_t *	AccumLevel
	Accum level for each branch in this toy in the selection this ToyBox belongs to.
Int_t	MaxAccumLevel
bool *	BranchPassed
Int_t	SuccessfulBranch
	The branch that is successful for this toy in the selection this ToyBox belongs to.
Int_t	SelectionEnabledIndex
	The enabled index of this selection this ToyBox belongs to.
SubDetId_h	DetectorFV
	Indicate the FV we are interested in.

Additional Inherited Members
Protected Attributes inherited from ToyBoxB
bool	_ResetCheckDone

Detailed Description

Definition at line 6 of file ToyBoxTracker.hxx.

Member Function Documentation

ResetBase()

void ToyBoxTracker::ResetBase ( )

virtual

Reset this base class.

Must delete these objects, which are created in the steps when applying the selection. TODO: should avoid that in the next version since multithreading requires no heap allocation of memory

Reimplemented from ToyBoxND280.

Definition at line 47 of file ToyBoxTracker.cxx.

                             {
//********************************************************************

  /// Must delete these objects, which are created in the steps when applying the selection.
  ///  TODO: should avoid that in the next version since multithreading requires
  ///        no heap allocation of memory
  if (Vertex) delete Vertex;
  if (NegativeTPCtracks) delete [] NegativeTPCtracks;
  if (PositiveTPCtracks) delete [] PositiveTPCtracks;

  Vertex=NULL;
  MainTrack=HMtrack=SHMtrack=HMNtrack=SHMNtrack=HMPtrack=SHMPtrack=NULL;
  VetoTrack=NULL;
  OOFVtrack=NULL;
  NegativeTPCtracks = NULL;
  PositiveTPCtracks = NULL;
  nNegativeTPCtracks = 0;
  nPositiveTPCtracks = 0;
  nLikeComputed = 0;
  nLikelihood = 0;

  ToyBoxND280::ResetBase();
}

---

The documentation for this class was generated from the following files:

• /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/psyche/psycheSelections/v3r12/src/ToyBoxTracker.hxx
• /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/psyche/psycheSelections/v3r12/src/ToyBoxTracker.cxx
