#include <InputConverter.hxx>

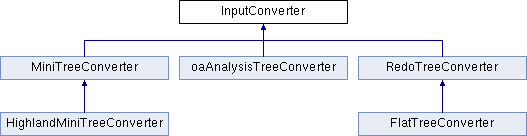

Inheritance diagram for InputConverter:

Public Member Functions
	InputConverter (const std::string &name)
	Constrctor provided a name.

virtual	~InputConverter ()
	Everyone should have a destructor...

const std::string &	GetTreeName ()
	returns the name of the tree to convert

const std::string &	Name () const
	Return the name of this converter.

void	SetName (const std::string &name)
	Set the name of this converter, which is used internally by the InputManager.

virtual void	Reset ()
	Reset the trees in the TChain and the number of entries. Also the header (POT, etc)

virtual bool	Initialize ()=0

virtual Int_t	GetSpill (Long64_t &entry, AnaSpillC *&spill)=0

virtual Int_t	GetEvent (Long64_t &entry, AnaEventC *&event)=0

virtual void	IncrementPOTBySpill ()=0

virtual bool	AddFileToTChain (const std::string &inputString)=0
	Add the file specified to fChain, and any friend chains that were set up.

virtual Long64_t	LoadTree (Long64_t entry)
	Handle loading the correct entry from fChain.

virtual Long64_t	GetEntries ()
	Return the total number of entries in the chain.

virtual Int_t	GetNEvents (Int_t entries=-1)
	Return the total number of events for a given number of entries in the tree.

virtual bool	IsCorrectType (const std::string &inputString)
	Whether the implementation can handle the specified file.

virtual void	SetCosmicMode (const bool cosmic)

bool	HasChain (const std::string &name)

void	AddChain (const std::string &name, const std::string &name_path="")

TChain *	GetChain (const std::string &name="")

Header &	header ()
	Returns the Header manager.

Protected Attributes
std::string	_name
	The name of the converter.

std::string	_treeName
	The name of the tree to convert.

int	_nentries
	The number of entries in the chain. To be set by the implementation.

TChain *	fChain
	The main TChain used to read events from the input file.

Int_t	fCurrent
	current Tree number in a TChain

Int_t	_currentFileIndex

std::string	_currentFileName

std::map< std::string, TChain * >	_chain_map

Header	_header
	The header manager.

Detailed Description

This base class specifies the interface that all input converters should implement.

An input converter takes an input file and converts the information into the AnaSpillB format used in the framework. For example, the oaAnalysisTreeConverter class converts an oaAnalysis file to the AnaSpillB format.

The converters themselves are found in the highLevelAnalysisIO package.

Definition at line 24 of file InputConverter.hxx.

Member Function Documentation

§ AddChain()

void InputConverter::AddChain	(	const std::string &	name,
		const std::string &	name_path = `""`
	)

inline

Add a chain with the given name to the map of chains the converter uses. When two names are given the first is the one we will use in the map, while the second is the actual path in the root file. If only one name is given, the path is used as name in the map

Definition at line 99 of file InputConverter.hxx.

                                                                         {
       if (!HasChain(name)) {
         if (name_path=="")
           _chain_map[name] = new TChain(name.c_str());
         else
           _chain_map[name] = new TChain(name_path.c_str());
       } else {
         std::cout << "TChain " << name << " already exists. Not added !!!" << std::endl;
       }
     }

§ GetChain()

TChain* InputConverter::GetChain ( const std::string & name = "" )

inline

Get the chain with the given name, if it has been added to the map of chains the converter uses. If no name is specified, the 'main' chain fChain is returned. If no chain with the given name is in the map of chains, then NULL is returned.

Definition at line 114 of file InputConverter.hxx.

                                                  {
       if (name == "") {
         return fChain;
       } else if (HasChain(name)) {
         return _chain_map[name];
       } else {
         return NULL;
       }
     }

§ GetEvent()

virtual Int_t InputConverter::GetEvent	(	Long64_t &	entry,
		AnaEventC *&	event
	)

pure virtual

Read the specified entry from the file, and fill the event. The entry number must be incremented inside this function 0 should be returned on error.

Implemented in oaAnalysisTreeConverter, RedoTreeConverter, and MiniTreeConverter.

§ GetSpill()

virtual Int_t InputConverter::GetSpill	(	Long64_t &	entry,
		AnaSpillC *&	spill
	)

pure virtual

Read the specified entry from the file, and fill the spill. The entry number must be incremented as part of this function, and the new entry number returned. 0 should be returned on error.

Implemented in oaAnalysisTreeConverter, RedoTreeConverter, FlatTreeConverter, and MiniTreeConverter.

§ HasChain()

bool InputConverter::HasChain ( const std::string & name )

inline

Whether the converter has added a chain with the given name to its map of chains.

Definition at line 91 of file InputConverter.hxx.

                                          {
       return (_chain_map.find(name) != _chain_map.end());
     }

§ IncrementPOTBySpill()

virtual void InputConverter::IncrementPOTBySpill ( )

pure virtual

Record the POT for the current spill, based on information in the AnaBeam member of the current AnaSpillB.

Implemented in oaAnalysisTreeConverter, RedoTreeConverter, and MiniTreeConverter.

§ Initialize()

virtual bool InputConverter::Initialize ( )

pure virtual

Any initialization that must be done. Called before the input file is read.

Implemented in oaAnalysisTreeConverter, FlatTreeConverter, RedoTreeConverter, and MiniTreeConverter.

§ SetCosmicMode()

virtual void InputConverter::SetCosmicMode ( const bool cosmic )

inlinevirtual

Specify whether we're running in "cosmic" mode or not. Some converters don't care about this, but others do and can override this function.

Reimplemented in oaAnalysisTreeConverter.

Definition at line 87 of file InputConverter.hxx.

87 {(void)cosmic;};

Member Data Documentation

§ _chain_map

std::map<std::string, TChain*> InputConverter::_chain_map

protected

Map of all the chains the converter uses. Access with AddChain(), HasChain() and GetChain() functions.

Definition at line 152 of file InputConverter.hxx.

The documentation for this class was generated from the following files:

/hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/psyche/psycheCore/v3r12/src/InputConverter.hxx
/hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/psyche/psycheCore/v3r12/src/InputConverter.cxx
