BinnedParams Class Reference

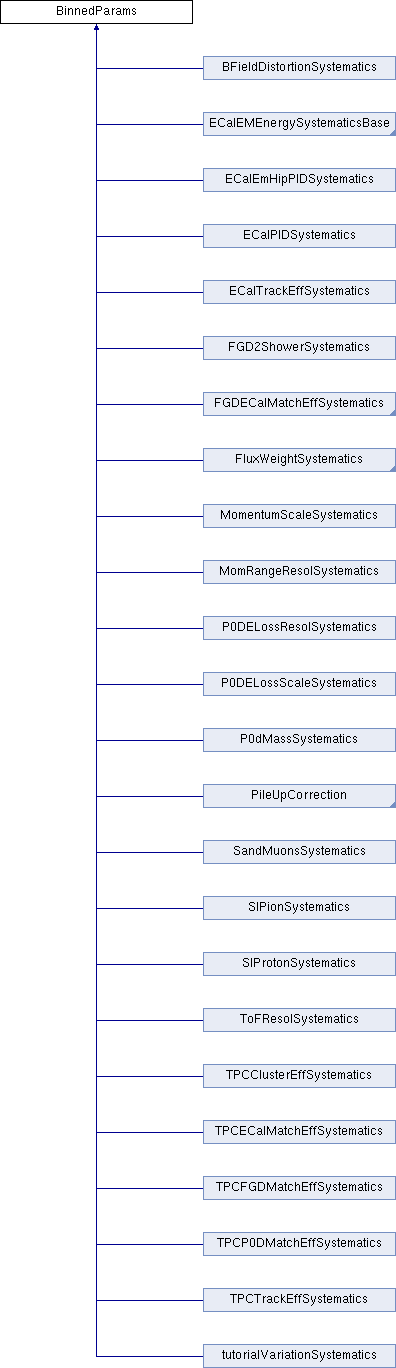

Inheritance diagram for BinnedParams:
BFieldDistortionSystematics ECalEMEnergySystematicsBase ECalEmHipPIDSystematics ECalPIDSystematics ECalTrackEffSystematics FGD2ShowerSystematics FGDECalMatchEffSystematics FluxWeightSystematics MomentumScaleSystematics MomRangeResolSystematics P0DELossResolSystematics P0DELossScaleSystematics P0dMassSystematics PileUpCorrection SandMuonsSystematics SIPionSystematics SIProtonSystematics ToFResolSystematics TPCClusterEffSystematics TPCECalMatchEffSystematics TPCFGDMatchEffSystematics TPCP0DMatchEffSystematics TPCTrackEffSystematics tutorialVariationSystematics

Public Types

enum  TypeEnum {
  k1D_SYMMETRIC = 0, k2D_SYMMETRIC, k3D_SYMMETRIC, k1D_SYMMETRIC_NOMEAN,
  k2D_SYMMETRIC_NOMEAN, k3D_SYMMETRIC_NOMEAN, k1D_EFF_SYMMETRIC, k2D_EFF_SYMMETRIC,
  k3D_EFF_SYMMETRIC, k1D_EFF_ASSYMMETRIC, k2D_EFF_ASSYMMETRIC, k3D_EFF_ASSYMMETRIC,
  k1D_DATA, k2D_DATA, k3D_DATA, kUnknown
}
 Enumerator describing the values that _type member can take.

enum  TypeShortEnum { k1D = 0, k2D, k3D, kUnknownShort }


Public Member Functions

 BinnedParams (const std::string &folder_name, const std::string &name, TypeEnum type, const std::string &extension="", bool useInterpolation=false)
 Constructor provided the folder name, name and the type.

 BinnedParams (const std::string &name, TypeEnum type, const std::string &extension="", bool useInterpolation=false)
 Constructor provided the name and the type, this is to make current psycheSystematics work, may remove it.

void AddBin (Float_t min, Float_t max, Float_t meanREAL, Float_t meanMC, Float_t sigmaMCl, Float_t sigmaMCh, Float_t meanDATA, Float_t sigmaDATAl, Float_t sigmaDATAh)
 Add a new bin for a 1D source.

void AddBin (Float_t min, Float_t max, Float_t mean, Float_t sigma)

void AddBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t meanREAL, Float_t meanMC, Float_t sigmaMCl, Float_t sigmaMCh, Float_t meanDATA, Float_t sigmaDATAl, Float_t sigmaDATAh)
 Add a new bin for a 2D source.

void AddBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t mean, Float_t sigma)

void AddBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t min3, Float_t max3, Float_t meanREAL, Float_t meanMC, Float_t sigmaMCl, Float_t sigmaMCh, Float_t meanDATA, Float_t sigmaDATAl, Float_t sigmaDATAh)
 Add a new bin for a 3D source.

void AddBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t min3, Float_t max3, Float_t mean, Float_t sigma)

void AddGraphBin (Float_t min, Float_t max, Float_t meanREAL, Float_t meanMC, Float_t sigmaMCl, Float_t sigmaMCh, Float_t meanDATA, Float_t sigmaDATAl, Float_t sigmaDATAh)
 Add a new bin graph for a 1D source.

void AddGraphBin (Float_t min, Float_t max, Float_t mean, Float_t sigma)

void AddGraphBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t meanREAL, Float_t meanMC, Float_t sigmaMCl, Float_t sigmaMCh, Float_t meanDATA, Float_t sigmaDATAl, Float_t sigmaDATAh)
 Add a new bin graph for a 2D source.

void AddGraphBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t mean, Float_t sigma)

void AddGraphBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t min3, Float_t max3, Float_t meanREAL, Float_t meanMC, Float_t sigmaMCl, Float_t sigmaMCh, Float_t meanDATA, Float_t sigmaDATAl, Float_t sigmaDATAh)
 Add a new bin graph for a 3D source.

void AddGraphBin (Float_t min, Float_t max, Float_t min2, Float_t max2, Float_t min3, Float_t max3, Float_t mean, Float_t sigma)

bool GetGraphBin (Float_t value, BinnedParamsGraphBin *&bin)
 Gets the bin for a 2D source.

bool GetGraphBin (Float_t value1, Float_t value2, BinnedParamsGraphBin *&bin)
 Gets the bin for a 3D source.

bool GetBin (Float_t value, BinnedParamsBin *&bin)
 Gets the bin for a 1D source.

bool GetBin (Float_t value1, Float_t value2, BinnedParamsBin *&bin)
 Gets the bin for a 2D source.

bool GetBin (Float_t value1, Float_t value2, Float_t value3, BinnedParamsBin *&bin)
 Gets the bin for a 3D source.

bool GetBinIndex (Float_t value, Int_t &index)
 Gets the bin index for a 1D source.

bool GetParametersForBin (Int_t index, Float_t &mean, Float_t &sigma)
 Gets the bin values for a source provided the bin index.

bool GetParametersForBin (Int_t index, BinnedParamsParams &params)

bool GetSigmaValueForBin (Int_t index, Float_t &sigma)
 Get only mean or sigma.

bool GetMeanValueForBin (Int_t index, Float_t &mean)

bool GetBinValues (Float_t value, Float_t &mean, Float_t &sigma)
 Gets the bin values for a 1D source.

bool GetBinValues (Float_t value, Float_t &mean, Float_t &sigma, Int_t &index)

bool GetBinSigmaValue (Float_t value, Float_t &sigma)
 Get only sigma.

bool GetBinSigmaValue (Float_t value, Float_t &sigma, Int_t &index)

bool GetBinMeanValue (Float_t value, Float_t &mean)

bool GetBinMeanValue (Float_t value, Float_t &mean, Int_t &index)

bool GetBinValues (Float_t value, BinnedParamsParams &params)

bool GetBinValues (Float_t value, BinnedParamsParams &params, Int_t &index)

bool GetBinValues (Float_t value1, Float_t value2, Float_t &mean, Float_t &sigma)
 Gets the bin values for a 2D source.

bool GetBinValues (Float_t value1, Float_t value2, Float_t &mean, Float_t &sigma, Int_t &index)

bool GetBinSigmaValue (Float_t value1, Float_t value2, Float_t &sigma)
 Get only sigma.

bool GetBinSigmaValue (Float_t value1, Float_t value2, Float_t &sigma, Int_t &index)

bool GetBinMeanValue (Float_t value1, Float_t value2, Float_t &mean)

bool GetBinMeanValue (Float_t value1, Float_t value2, Float_t &mean, Int_t &index)

bool GetBinValues (Float_t value1, Float_t value2, BinnedParamsParams &params)

bool GetBinValues (Float_t value1, Float_t value2, BinnedParamsParams &params, Int_t &index)

bool GetBinValues (Float_t value1, Float_t value2, Float_t value3, Float_t &mean, Float_t &sigma)
 Gets the bin values for a 3D source.

bool GetBinValues (Float_t value1, Float_t value2, Float_t value3, Float_t &mean, Float_t &sigma, Int_t &index)

bool GetBinSigmaValue (Float_t value1, Float_t value2, Float_t value3, Float_t &sigma)
 Get only sigma.

bool GetBinSigmaValue (Float_t value1, Float_t value2, Float_t value3, Float_t &sigma, Int_t &index)

bool GetBinMeanValue (Float_t value1, Float_t value2, Float_t value3, Float_t &mean)

bool GetBinMeanValue (Float_t value1, Float_t value2, Float_t value3, Float_t &mean, Int_t &index)

bool GetBinValues (Float_t value1, Float_t value2, Float_t value3, BinnedParamsParams &params)

bool GetBinValues (Float_t value1, Float_t value2, Float_t value3, BinnedParamsParams &params, Int_t &index)

bool GetInterBinValues (Float_t value1, BinnedParamsParams &params)
 Get values using interpolation.

bool GetInterBinValues (Float_t value1, Float_t value2, BinnedParamsParams &params)
 Gets the bin values for a 2D source.

bool GetInterBinValues (Float_t value1, Float_t value2, Float_t value3, BinnedParamsParams &params)
 Gets the bin values for a 3D source.

void SetType (TypeEnum type)
 Set the type.

void SetName (const std::string &name)
 Set the name.

void SetInterpolationUsage (bool use)
 Set the name.

const std::string & GetDataName ()
 Get the name of the source.

TypeEnum GetDataType ()
 Returns the type of the data.

bool GetInterpolationStatus ()
 Returns the type of the data.

void Print ()
 Dump into the screen the systematic source values.

void Read (const std::string &inputDirName, const std::string &extension="")
 Read from a file the systematic source values.

Int_t GetNBins ()
 Get the number of bins.

bool UpdateEfficiencyCounter (Int_t index, bool correct)
 Update the efficiency variables _ncorrect and _nwrong.

void InitializeEfficiencyCounter ()
 Initialize counters.

Int_t GetNCorrectAssoc (Int_t index)

Int_t GetNWrongAssoc (Int_t index)


Detailed Description

Definition at line 250 of file BinnedParams.hxx.

The documentation for this class was generated from the following files:
