Representation of a global track. More...
#include <DataClasses.hxx>

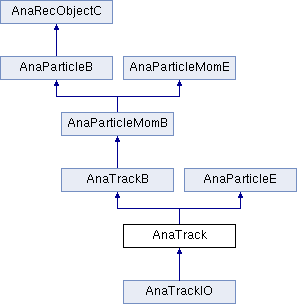

Inheritance diagram for AnaTrack:
Public Member Functions | |
| virtual AnaTrack * | Clone () |
| Clone this object. | |
| virtual void | Print () const |
| Dump the object to screen. | |
 Public Member Functions inherited from AnaTrackB | |
| const AnaTrackB * | GetOriginalTrack () const |
| Return a casted version of the original AnaParticleB associated. | |
| Public Member Functions inherited from AnaParticleB | |
| AnaTrueParticleB * | GetTrueParticle () const |
| Return a casted version of the AnaTrueObject associated. | |
| Public Member Functions inherited from AnaRecObjectC | |
| void | Print () const |
| Dump the object to screen. | |
Public Attributes | |
| Int_t | Detectors |
| Float_t | Length |
| The length of this global track. | |
| std::vector< AnaTrackerTrackB * > | TRACKERSegments |
| The TRACKER segments that contributed to this global track. | |
| Public Attributes inherited from AnaTrackB | |
| Int_t | Index |
| The index of this particle track in the vector of particles. TODO: Not sure it is needed (only use in PID utils) | |
| Float_t | RangeMomentumMuon |
| Momentum by range calculated with muon hypothesis. | |
| Float_t | MomentumFlip |
| Momentum for the main PID hypothesis and reverse sense. More... | |
| Int_t | TPCQualityCut |
| Whether track passes TPC quality cut. | |
| AnaToF | ToF |
| Times of flight between pairs of detectors. | |
| AnaTPCParticleB * | TPCSegments [NMAXTPCS] |
| The TPC segments that contributed to this global track. | |
| int | nTPCSegments |
| How many TPC tracks are associated with this track. | |
| AnaFGDParticleB * | FGDSegments [NMAXFGDS] |
| The FGD segments that contributed to this global track. | |
| int | nFGDSegments |
| How many FGD tracks are associated with this track. | |
| AnaECALParticleB * | ECALSegments [NMAXECALS] |
| The ECAL segments that contributed to this global track. | |
| int | nECALSegments |
| How many ECAL tracks are associated with this track. | |
| AnaSMRDParticleB * | SMRDSegments [NMAXSMRDS] |
| The SMRD segments that contributed to this global track. | |
| int | nSMRDSegments |
| How many SMRD tracks are associated with this track. | |
| AnaP0DParticleB * | P0DSegments [NMAXP0DS] |
| The P0D segments that contributed to this global track. | |
| int | nP0DSegments |
| How many P0D tracks are associated with this track. | |
| std::vector< AnaTPCParticleB * > | TPCSegmentsVect |
| A copy of the segment arrays but using an std::vector, which can be saved into a tree. | |
| std::vector< AnaFGDParticleB * > | FGDSegmentsVect |
| std::vector< AnaECALParticleB * > | ECALSegmentsVect |
| std::vector< AnaSMRDParticleB * > | SMRDSegmentsVect |
| std::vector< AnaP0DParticleB * > | P0DSegmentsVect |
| Public Attributes inherited from AnaParticleB | |
| Int_t | NHits |
| The number of hits in the particle. | |
| Int_t | NNodes |
| The number of nodes in the reconstructed object. | |
| Float_t | DirectionStart [3] |
| The reconstructed start direction of the particle. | |
| Float_t | DirectionEnd [3] |
| The reconstructed end direction of the particle. | |
| Float_t | PositionStart [4] |
| The reconstructed start position of the particle. | |
| Float_t | PositionEnd [4] |
| The reconstructed end position of the particle. | |
| const AnaParticleB * | Original |
| Public Attributes inherited from AnaRecObjectC | |
| Int_t | UniqueID |
| The UniqueID of this reconstructed object. | |
| Int_t | Status |
| The Status of the fit of this reconstructed object. | |
| AnaTrueObjectC * | TrueObject |
| The link to the true oject that most likely generated this reconstructed object. | |
| unsigned long | Detector |
| Public Attributes inherited from AnaParticleMomE | |
| Float_t | Charge |
| The reconstructed charge of the particle. | |
| Float_t | Momentum |
| The reconstructed momentum of the particle, at the start position. | |
| Float_t | MomentumEnd |
| The reconstructed momentum of the particle, at the end position. | |
| Public Attributes inherited from AnaParticleE | |
| Float_t | MomentumError |
| The error on the reconstructed momentum. | |
| Int_t | NDOF |
| The number of degrees of freedom when the track was fitted with a Kalman filter. | |
| Float_t | Chi2 |
| The chi2 value when the track was fitted using a Kalman filter. | |
| Float_t | MomentumEle |
| Momentum from refitting the track assuming the electron hypothesis. | |
| Float_t | MomentumErrorEle |
| Error on momentum from refitting the track assuming the electron hypothesis. | |
| Float_t | MomentumMuon |
| Momentum from refitting the track assuming the muon hypothesis. | |
| Float_t | MomentumErrorMuon |
| Error on momentum from refitting the track assuming the muon hypothesis. | |
| Float_t | MomentumProton |
| Momentum from refitting the track assuming the proton hypothesis. | |
| Float_t | MomentumErrorProton |
| Error on momentum from refitting the track assuming the proton hypothesis. | |
| Float_t | DirectionStartFlip [3] |
| Direction at the start for the main PID hypothesis and reverse sense. | |
| Int_t | ReconPDG |
| PDG of the most probable particle hypothesis used at reconstruction level. | |
| Int_t | Bunch |
| The bunch of the track, based on the PositionStart.T() | |
| TVector3 | UpstreamHits_Position [2] |
| TVector3 | DownstreamHits_Position [2] |
| Float_t | UpstreamHits_Charge [2] |
| Float_t | DownstreamHits_Charge [2] |
| AnaVertexB * | ReconVertex |
| The pointer to the most primary AnaVertexB (global vertex) associated with this track. | |
| std::vector< AnaVertexB * > | ReconVertices |
| Vector of pointers to AnaVertexB (global vertices) associated with this track. | |
| Float_t | MomentumAtVertex |
| The reconstructed momentum of the track, at the most primary global vertex (if exists). | |
| Float_t | DirectionAtVertex [3] |
| The reconstructed direction of the track at the most primary global vertex (if exists). | |
Protected Member Functions | |
| AnaTrack (const AnaTrack &track) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
| Protected Member Functions inherited from AnaTrackB | |
| AnaTrackB (const AnaTrackB &track) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
| Protected Member Functions inherited from AnaParticleMomB | |
| AnaParticleMomB (const AnaParticleMomB &part) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
| Protected Member Functions inherited from AnaParticleB | |
| AnaParticleB (const AnaParticleB &part) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
| Protected Member Functions inherited from AnaRecObjectC | |
| AnaRecObjectC (const AnaRecObjectC &recObj) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
| Protected Member Functions inherited from AnaParticleMomE | |
| AnaParticleMomE (const AnaParticleMomE &part) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
| Protected Member Functions inherited from AnaParticleE | |
| AnaParticleE (const AnaParticleE &track) | |
| Copy constructor is protected, as Clone() should be used to copy this object. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from AnaParticleMomB | |
| static bool | CompareMomentum (const AnaParticleMomB *t1, const AnaParticleMomB *t2) |
| Function used to sort momentum in decreasing order. | |
| Static Public Member Functions inherited from AnaParticleB | |
| static bool | CompareNHits (const AnaParticleB *t1, const AnaParticleB *t2) |
| Compare the NHits of two particles. Return whether t1 is higher NHts than t2. | |
Detailed Description
Representation of a global track.
Definition at line 571 of file DataClasses.hxx.
Member Data Documentation
§ Detectors
| Int_t AnaTrack::Detectors |
A different representation of the detectors used by this track.
The systems are numbered as: 1: TPC1 2: TPC2 3: TPC3 4: FGD1 5: FGD2 6: P0D 7: DSECal 8: Any SMRD module 9: Any TECal or PECal module
If this field then has a value of "235", it means the track used TPC2, TPC3 and FGD2. You will have to do some mathematical manipulation to extract the information you want, so it is recommended to just use the DetUsed array instead.
Definition at line 609 of file DataClasses.hxx.
The documentation for this class was generated from the following files:
- /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/highland2/highlandEventModel/v2r10/src/DataClasses.hxx
- /hep/T2K/nd280rep/ANALYSIS/HIGHLAND2/ANAPARTICLE/highland2/highlandEventModel/v2r10/src/DataClasses.cxx
